Answer
Mar 03, 2022 - 01:19 PM

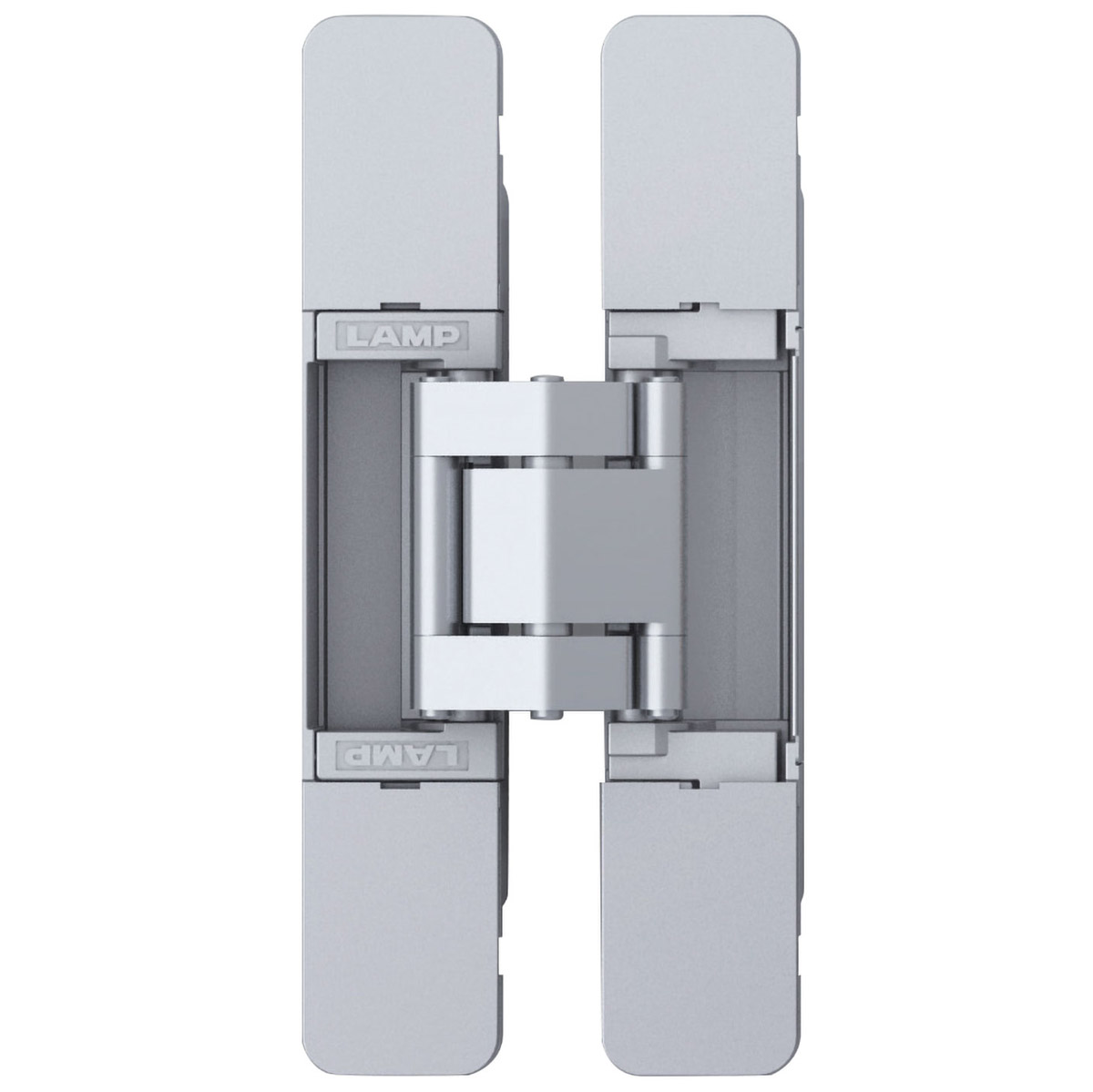

Sugatsune said there wouldn't be a max door thickness but you wouldn't be able to center the hinge on the door, it would have to be offset. There are max weights and max height x width measurements however.
- Max. Door Weight: 121lbs.(55kg) / pair; 154lbs.(70kg) / 3 hinges.
- Minimum Door Thickness: 1-3/8" (35mm)
- Max. Door Size: 94-1/2" (2400mm)H x 35-7/16" (900mm)W
