Answer
May 18, 2022 - 09:50 AM

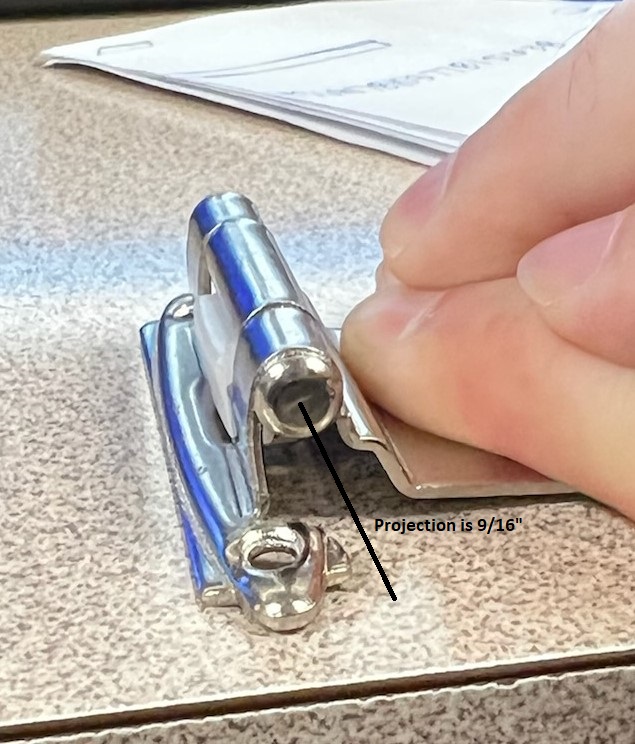

The projection is what you are looking for and ours measures 9/16" also,. Please see the image below.

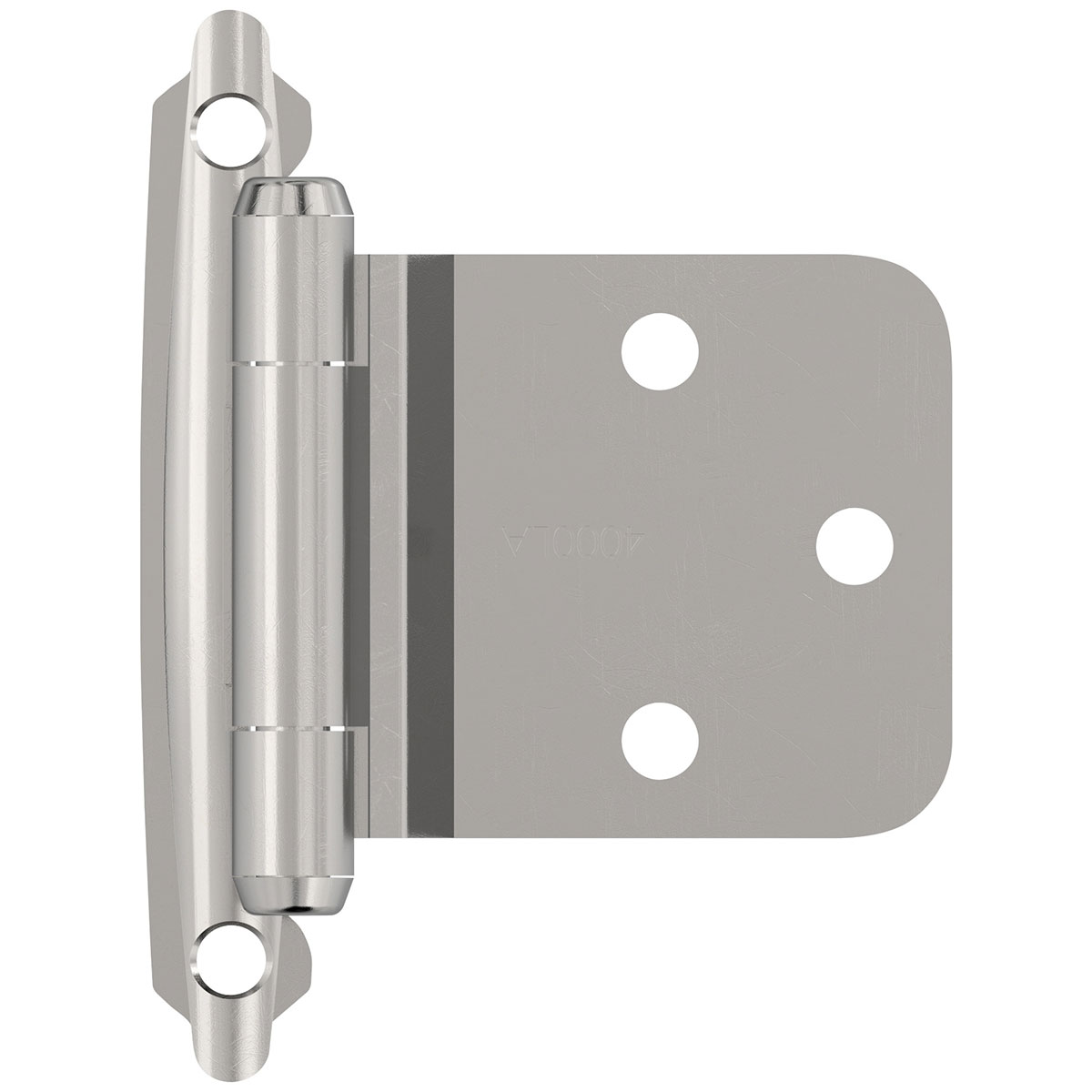

What is the distance from the face that screws on to the wall and the pin? Amerock 30° Reverse Bevel Variable Overlay Face Frame Mount Self Closing Cabinet Hinge - PAIR (Chrome)
All the measurements on the drawing match with what I have, but there is no information about how "tall" the hinge is from the wall. Mine is about 9/16" from to the center of the pin.
Status:
Open May 18, 2022 - 11:53 AM
