Answer
Jul 19, 2023 - 11:07 AM

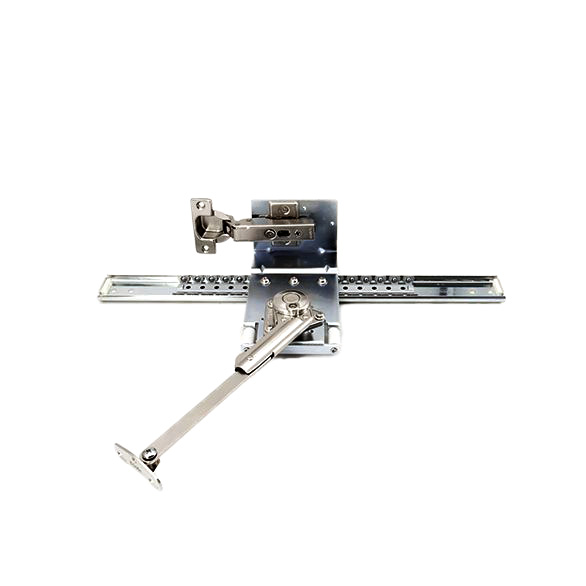

You need to choose the IF-360W-16 to get the specs for a 16" mechanism.
Recommended Door Height (mm):
13-3/4" + T (350 + T)
E = Door Storage (mm):
12-3/8" + T (315 + T)
Slide Length:
16" (406.4 mm)
Travel Length:
12-9/16" (318.4 mm)
You'll find additional specifications if you click on the link below.
https://www.sugatsune.com/site-assets/201B_PDF/349_350.pdf
