Answer
Dec 07, 2023 - 04:00 PM

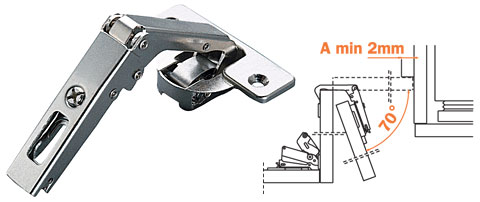

The Salice 70° Pie-Cut Corner Hinge is a self-closing, screw-on hinge that necessitates a distinct installation process. The hinge's installation is determined by the thickness of your door. If you have a 16mm (5/8") door, a 6mm plate should be utilized, mounted 31mm (1-1/4") from the door's edge. For a 19mm (3/4") door, a 2mm or 3mm plate should be positioned 28mm (1-1/8") from the edge. If your door is 22mm (7/8") thick, use a 0mm plate, positioned 25mm (1") from the edge. Remember the 35mm bore for the pie cut hinge is required to be bored 4mm from the edge. For all these options, the measurement for the plates is from the door edge to the center of the screw holes on each plate. These instructions ensure your pie cut corner hinges function as intended.
