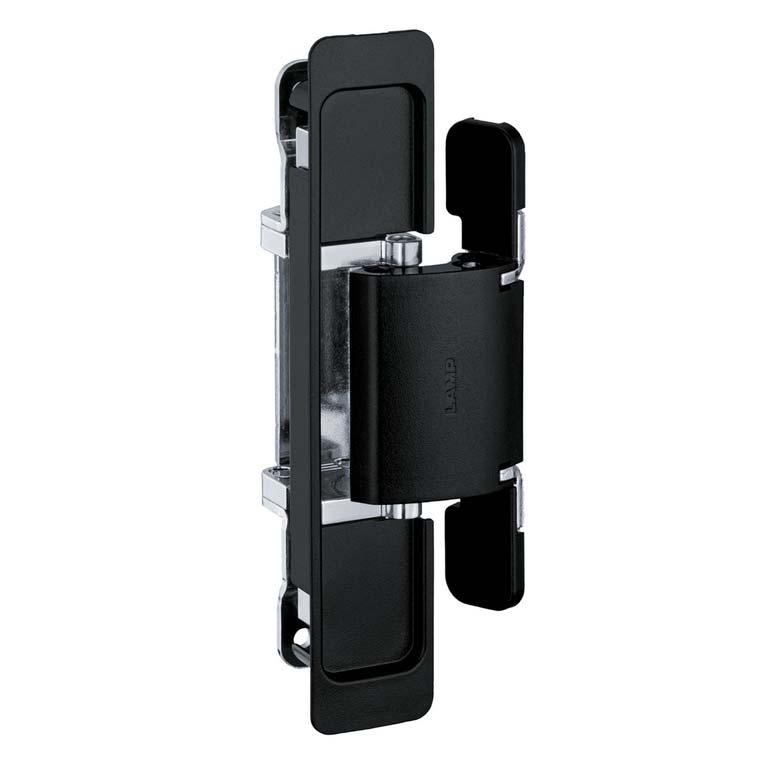

Would the HES2S-150-A-110-BL work for an out-swing door? Sugatsune 3-Way Adjustable Surface Mount Concealed Hinge for 1-3/8" (35mm) Min. Thick Doors - EACH (Warm Gray)

Frame is on right, door to open toward yourself, into the room. Most of the pictures and instructions show it as an in swing door. What is the distance in from the edge of the frame for the fixing screw holes on the frame side? Diagram does not give a measurement.

Status: Open Oct 03, 2025 - 08:34 AM

Do you have the same question? Follow this Question

1answer

Answer

Oct 03, 2025 - 08:34 AM

Left swing or right swing, inswing or outswing, this hinge does it all. We are unsure what measurement you are after. The spec PDF HERE could help, if it doesn't please call us at 800-708-6649 so we can get a better understanding of the measurement you need.
