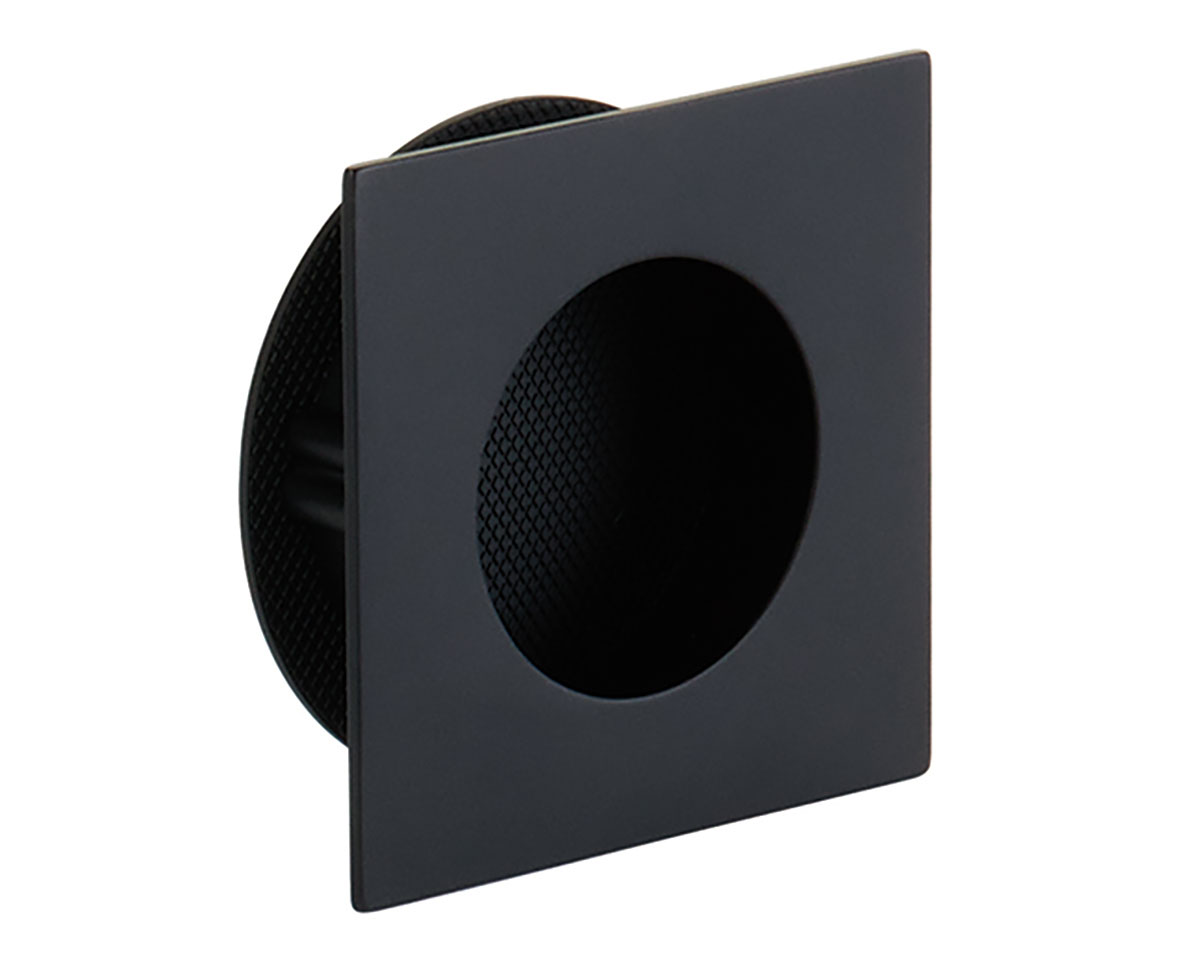

Is the required cutout a round bore only, or does the face require a mortised recess? Schaub and Company Urbano 3" (76mm) x 3" (76mm) Square Recessed Pull (Matte Black)

Can you provide the manufacturer installation template/cut sheet for the Schaub Urbano recessed pull? I need to confirm the exact cutout size, cutout depth, minimum door thickness, mounting method, and whether it can be installed on 3/4" thermofoil/MDF cabinet fronts. Also, is the required cutout a round bore only, or does the face require a mortised recess?

Status: Open Apr 02, 2026 - 01:40 PM

Do you have the same question? Follow this Question

1answer

Answer

Apr 02, 2026 - 01:40 PM

For material thickness of 3/4" only.
Hole cutout in material is 2-1/2" in diameter.
Center hole in flush pull is 1-3/4" in diameter.
Flush pull is two parts, unscrew the back and insert the front in the cabinet hole, then align the back and screw the back to the front.
