When open, will the bottom of the door clear the top of the cabinet opening?

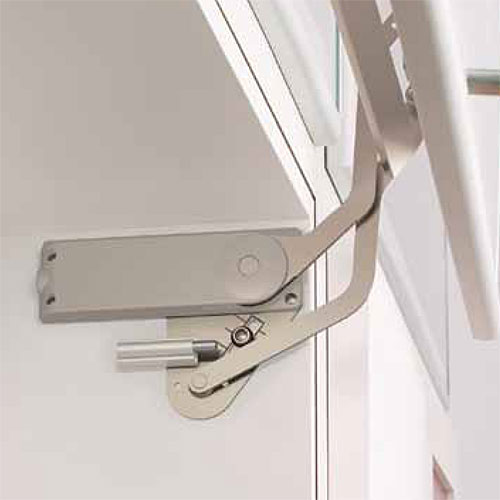

Sugatsune SLUN Lapcon Vertical Swing Lift-Up (Lid Stay) Mechanism - PAIR (Nickel)
Status:
Open Oct 01, 2025 - 08:34 AM
1answer
Answer
Oct 01, 2025 - 08:34 AM
The door travel length is (425mm) 16-47/64. This model will work on door heights 15-23/64in.(390mm) to 17-23/32in.(450mm). So if your door is (425mm) 16-47/64 or less, then yes it will clear the top of of the opening. If it is greater than (425mm) 16-47/64, then no it will not.
