Description

Blum MOVENTO is the latest advancement in concealed runner technology. Standard with soft close BLUMOTION, MOVENTO undermount drawer slides provide multiple solutions with a single runner. Combine with BLUM motion technologies, TIP-ON BLUMOTION or SERVO-DRIVE, to ensure drawers open with a light press of the front and close softly and quietly.
  • NOTE: Front locking devices are required for installation and must be ordered separately, see below.
  • Installation: For Frameless or blocked-out face frame cabinets (For these 763 series runners, rear brackets and sockets cannot
    be used. Cabinet sides must be blocked-out flush with the inside of the frame.)
  • Four-dimensional adjustment.
  • Elongated holes for depth adjustment.
  • Bottom Mount holes.
  • Extension: Full extension concealed runners.
  • Load Rating: 125lb static load capacity.
  • For 1/2" (13mm)  to 5/8" (16mm) drawer material thickness.
  • BLUMOTION soft closing.

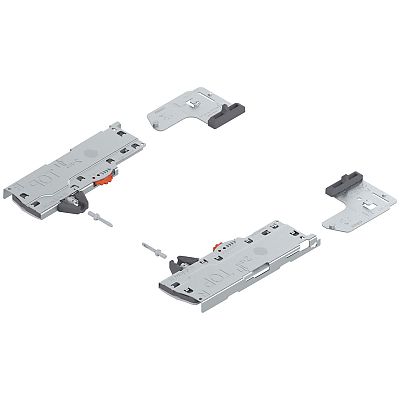

  • Compatible with TIP-ON BLUMOTION or SERVO-DRIVE touch-to-open system.
  • Tool-free tilt, height and rear side-to-side adjustment.
  • Lateral stabilizer available for wide applications.
  • Concealed roller carriage with permanently lubricated synthetic rollers.

Required Accessories

Optional Accessories

Specifications

Manufacturer:
Blum
Manufacturer Location:
USA
Color/Finish:
zinc
Material:
steel
Style:
concealed/undermount
Type:
concealed soft-close slides
Load Rating:
110lbs. (49.895kg)- 125lbs. (56.699kg)
Extension:
full extension
Mounting:
Undermount
Closing Type:
Soft Close
California Residents:
WARNING: This product can expose you to chemicals including lead and/or wood dust, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Installation / Specification Documents

Blum Adjustments & Easy Assembly App Installation Instructions Blum Movento Catalog

Return Policy

If an item is returnable (See restocking list), you must first call or use form below to request a return goods authorization (RGA) prior to returning any items purchased through us.

We will not accept any returns without an RGA. All items must be returned in "Re-Saleable Condition", in original packaging with all parts included. Customer is responsible for shipping charges.

Our restocking policies vary, depending on manufacturer and item.

Click here for our restocking fee schedule. Please call or email us with any other questions you may have on returns.

Request a Return Authorization

Shop the series

Blum MOVENTO

View Product Collection
Blum 21" (533mm) MOVENTO 769R Heavy-Duty Bottom Mount, Concealed Soft-Close Over-Extension Drawer Slide - PAIR

Blum 21" (533mm) MOVENTO 769R Heavy-Duty Bottom Mount, Concealed Soft-Close Over-Extension Drawer Slide - PAIR

View Product
Blum 2-1/2" (64mm) TIP-ON MOVENTO BLUMOTION Synchronization Rod for Narrow Applications

Blum 2-1/2" (64mm) TIP-ON MOVENTO BLUMOTION Synchronization Rod for Narrow Applications

View Product

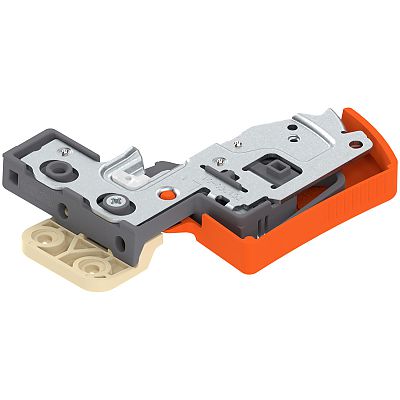

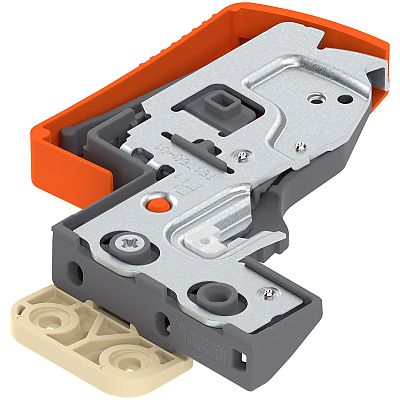

Blum MOVENTO Front Locking Device w/Side-to-Side Adjustment - Vertical Mount, Right Hand - EACH
