Description

Quadro V6 5D drawer runners deliver unparalleled drawer convenience with their sleek, concealed design. Built for long-lasting performance using a steel ball bearing system, they offer smooth operation and durability. The slide-on installation with catches allows for five different adjustments for a perfect fit.
  • NOTE: Front Fixing brackets must be ordered separately, see below.
  • Integrated Silent System closes the drawer quietly and gently.

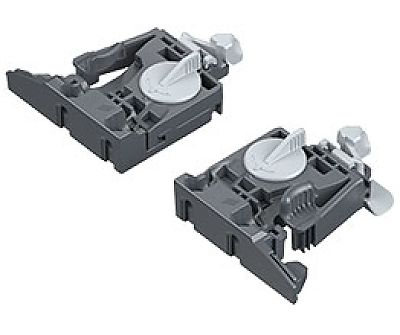

  • Slide on installation with 2D front fixing brackets for height and side adjustment, integrated depth adjustment, integrated tilt adjustment, integrated radial adjustment.
  • Adjustments all tool-lees: height adjustment up to + 3 mm, side adjustment up to +/- 1.5 mm, depth adjustment up to + 2/- 1 mm, tilt adjustment up to + 4 mm and radial adjustment up to +/- 1.5 mm
  • Extension: Full extension concealed runners.
  • Load Rating: Load capacity to EN 15338, Level 3; up to 90 lbs dynamic (100 lbs static), as per ANSI / BHMA 156.9 grade 1 specifications on a 21“ length slide
  • For up to 5/8" (16 mm) drawers side thickness.
  • For face frame or frameless applications.
  • Galvanized steel, suitable for rooms exposed to moisture.
  • Maximum Drawer Width: 48".




Required Accessories

Optional Accessories

Specifications

Manufacturer:
Hettich
Manufacturer Location:
Germany
Color/Finish:
zinc
Material:
steel
Style:
concealed/undermount
Type:
concealed soft-close slides
Warranty:
Limited lifetime warranty.
Load Rating:
90lbs. (40.823kg)- 100lbs. (45.359kg)
Extension:
full extension
Mounting:
Undermount
Closing Type:
Soft Close
California Residents:
WARNING: This product can expose you to chemicals including lead and/or wood dust, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional:
  • Recommended Use: Heavy-duty slide designed for kitchen cabinets, bathroom vanities, desks and furniture.
  • Load capacity: 90 lbs dynamic (100lbs static)
  • Mounting: Concealed, undermount; For face frame & frameless applications.
  • Features: Full-extension runner for wooden drawers.
  • Perfect vertical and lateral stability & Soft closure with self close  - the spring-operated mechanism closes the drawer safely and automatically.
  • Maintenance-free through self-cleaning ball tracks.
  • Robust, resilient tracks to ensure optimal runner action through precision-guided steel balls.
  • Slide-on assembly - simply place the drawer on the runners and push in for connection.
  • For 16 mm [5/8"] and 12mm [1/2"] drawer panel thickness (spacers required for 1/2" material).
  • Silent System: the dampening device integrated in Quadro IW21 closes the drawer softly and soundlessly.
  • Slide Action: Ball-bearing

Installation / Specification Documents

Product Specifications Product Brochure Installation Instructions

Return Policy

If an item is returnable (See restocking list), you must first call or use form below to request a return goods authorization (RGA) prior to returning any items purchased through us.

We will not accept any returns without an RGA. All items must be returned in "Re-Saleable Condition", in original packaging with all parts included. Customer is responsible for shipping charges.

Our restocking policies vary, depending on manufacturer and item.

Click here for our restocking fee schedule. Please call or email us with any other questions you may have on returns.

Request a Return Authorization

Shop the series

Hettich Quadro V6 5D Drawer Slides with Silent System

View Product Collection

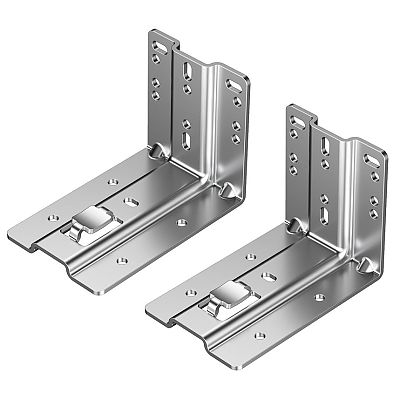

Hettich Quadro Metal Rear Mount Socket - PAIR
