Description

Concealed cabinet leveler, perfect fit for 16mm (5/8") panels. Four-step easy installation with drill template (sold separately).
  1. Use the template to drill the placement hole.
  2. Drill the adjustment hole.
  3. Insert 12mm concealed leveler into placement hole.
  4. Adjust as needed through adjustment hole.

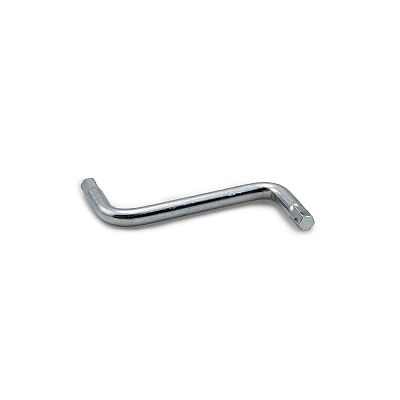

  • Easy height adjustments with a #4 hex key or screwdriver (both sold separately).
  • Up to 1” height adjustment (11/16” on 306-03-12).
  • One-person leveling.
  • 660 lb. weight capacity at any extension; 330 lb. lift capacity (when engaging gear mechanism), per leveler.
  • Sturdy metal levelers won’t bend when moving furniture.
  • 12mm drill bit available. (sold separately).
  • Levelers sold individually.

Optional Accessories

Specifications

Manufacturer:
Peter Meier Inc.
Manufacturer Location:
Italy
Material:
steel
Type:
leg leveler
California Residents:
WARNING: This product can expose you to chemicals including lead and/or wood dust, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Installation / Specification Documents

Product Catalog Product Specifications

Return Policy

If an item is returnable (See restocking list), you must first call or use form below to request a return goods authorization (RGA) prior to returning any items purchased through us.

We will not accept any returns without an RGA. All items must be returned in "Re-Saleable Condition", in original packaging with all parts included. Customer is responsible for shipping charges.

Our restocking policies vary, depending on manufacturer and item.

Click here for our restocking fee schedule. Please call or email us with any other questions you may have on returns.

Request a Return Authorization

Shop the series

Peter Meier Camar Cabinet Levelers

View Product Collection
CAMAR® 300 Metal Heavy-Duty Leveler - (EACH)

CAMAR® 300 Metal Heavy-Duty Leveler - (EACH)

View Product
Peter Meier 202 4-Finger Toe-Kick Clip - (EACH)

Peter Meier 202 4-Finger Toe-Kick Clip - (EACH)

View Product

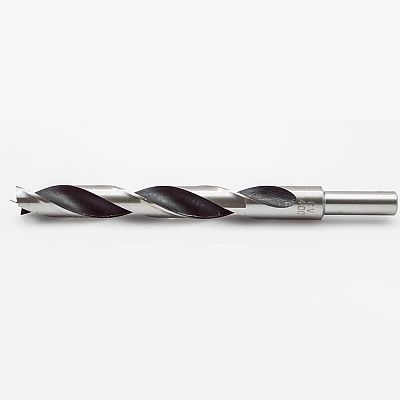

Peter Meier 12mm Drill Bit for the Heavy-Duty Metal Concealed Cabinet Levelers

Peter Meier 12mm Drill Bit for the Heavy-Duty Metal Concealed Cabinet Levelers

View Product

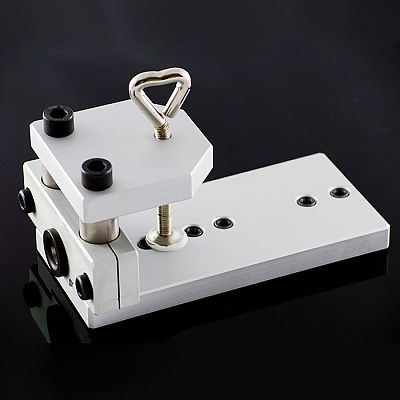

Peter Meier 12mm Drill Template for the Heavy-Duty Metal Concealed Cabinet Levelers
